Foaming
Chemical Action
Rinsing
Vacuuming

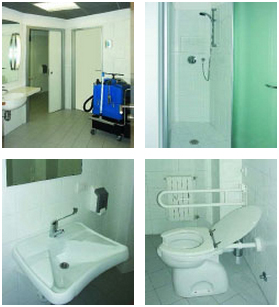

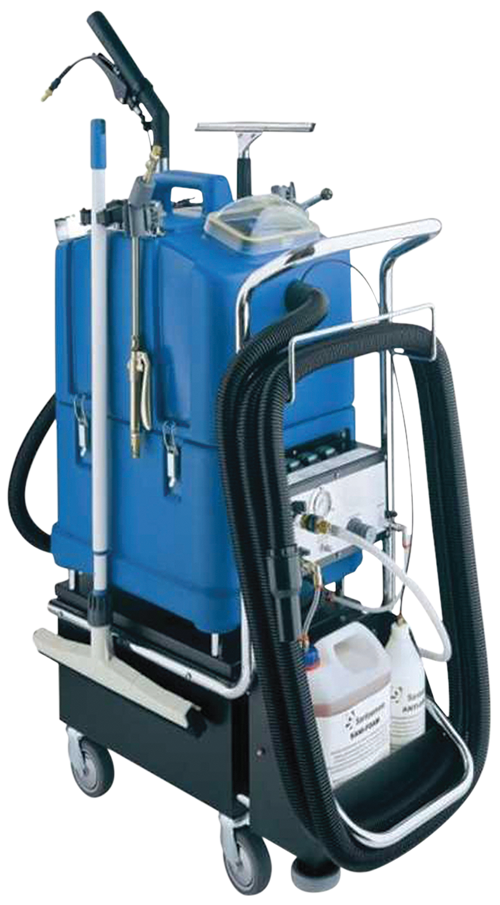

Foamtec 30 are the smallest and medium size models respectively in the range of machines working with Santoemma patented Foamtec system. These machines allow complete cleaning and sanitizing public restrooms by spraying foam, rinsing and vacuuming.
The cleaning process is carried out through four stages:
- Spraying of foam on all the surfaces to be, cleaned (walls, sanitary fixtures, showers and panes).
- Foam chemical action.
- Rinsing with fresh water.
- Vacuuming of residual water from floor.
Technical Specification
| Model No. | Power | Vacuum Motor | Automatic Filling System |
Tank Construction |
Clean Water Capacity |
Dirty Water Capacity |
Maximum Pressure | Maximum Water-Flow |
|---|---|---|---|---|---|---|---|---|
| Foamtec 30 | 1000 W | 2 Stages | Yes | High Density Polythylene |
30 Ltrs | 30 Ltrs | 28 Bar | 4 Ltrs/Min |
| Pump with Bypass | Maximum Waterlift |
Maximum Air-flow |
Compressor | Water Consumption |
Chemical Consumption |
Chemical Dilution |
|---|---|---|---|---|---|---|
| Pistone Type 180 W Power |
2200 mm H20 | 50 Ltrs/Sec | 350 W | 30 Ltrs | 500 Grams | Pre-Set Around 4% |
| Cable Length | Weight(Machine Body) | Weight(Packaged Machine) | Package Dimensions |
Dimensions ( L x W x H ) |
|---|---|---|---|---|
| 10 Mtrs | 74 Kgs | 99 Kgs | 600 x 950 x 1215 mm | 380 x 800 x 1050mm |
